Datafoundry Texas

Texas EEUU

Datafoundry

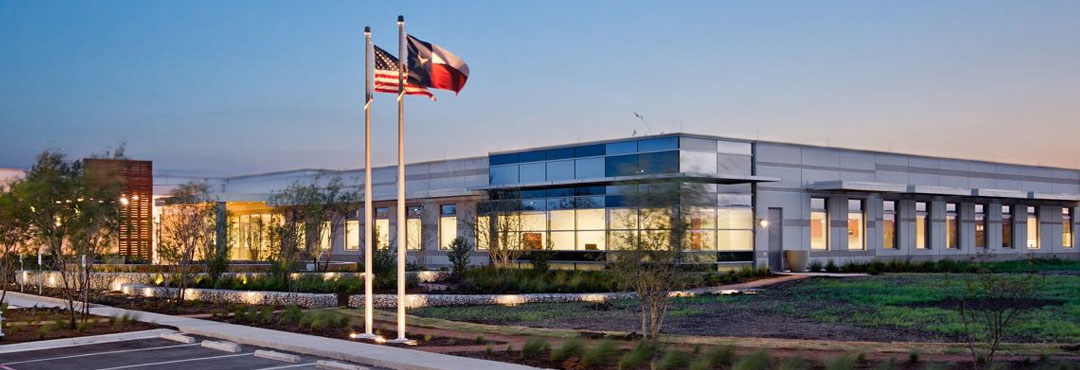

Built in 2011, Texas 1 was Data Foundry’s first purpose-built facility. Texas 1 is a carrier-neutral, 130,000 square foot data center located at the 40-acre Data Ranch development Austin. Powered by two independent substations and connected to over 16 fiber providers, Texas 1 is one of the most redundant, connected, and secure data centers and disaster recovery solutions available in Texas. The facility is ideal for High Performance Computing (HPC), supporting up to 50 kW per cabinet.


TexasNAP® – Austin’s Meet-Me-Room

16+ carriers are available through our Texas 1 meet-me room, which we call the TexasNAP. We create a competitive environment for carriers and give you the power of choice when it comes to selecting network providers.


Redundant Infrastructure
  • Diverse carrier entry through underground, concrete-encased ducts
  • Redundant Cisco routers and switches
  • Multihomed redundant connectivity to global upstream providers

Blended Bandwidth

Data Foundry offers a blended Internet service that provides access to a minimum of four carriers at once. Data Foundry’s blended bandwidth ensures the most efficient and reliable routing for network connectivity.


Diverse Carrier Entry

We have made it easy for telecom carriers to connect to Texas 1. Carriers are provided access to underground, concrete-encased duct banks that enter the Data Ranch campus via diverse paths on the property. All telecom is delivered to separate carrier rooms inside the Texas 1 data center.


Built-In Redundancy
  • Independent dual power feeds
  • Connected to 2 distinct 400 MW substations.

Generators
  • Multiple 2.5 MW N+1 Caterpillar diesel generators
  • Generators fully enclosed in individual ventilated, air-conditioned bays
  • 50,000 gallons of fuel onsite

UPS
  • Each UPS room has two incoming power feeds
  • UPS feeds are routed via diverse paths
  • Multiple 750 kVA Powerware 9395 modules
  • N+1 to 2N redundancy available

High-Density Cooling

Texas 1’s concurrently maintainable chilled water cooling system is ideal for High Performance Computing (HPC), supporting 50 kW cabinets and blade server environments.


CRAHs
  • 24,000 CFM chilled water CRAHs (Computer Room Air Handlers) in N+3 configuration.
  • Supports high air Delta-Ts for blade server environments

Chillers
  • 550-ton VFD York chillers with fast restart
  • N+1 redundancy

Concurrently Maintainable

Texas 1’s cooling system has a concurrently maintainable design with dual independent water feeds.


External
  • 24x7x365 manned security at gated entry, entrances and loading docks
  • Man traps and biometric access control at entry points
  • Security cameras with digital video recording

Internal
  • Escorted access
  • Color camera digital surveillance system
  • Video recording upon every door opening
  • Custom cabinet and cage security options
  • Data Foundry personnel onsite 24x7x365
